Tube of the Month : The 6DN7

Hi!

This month we have a double triode with dissimilar systems: The 6DN7.




Like many other dissimilar double triodes the 6DN7 was developed for the oscillator and amplifier sections in the vertical deflection system of TV sets.

It comes with an Octal base which is shown on the left. Unlike other dissimilar duotrides which usually have a high mu and a low mu section, both systems of the 6DN7 have a medium mu. But very different plate dissipation ratings. This sets it apart from other such duotriodes like the 6GL7 or 6FM7 Section one has an amplification factor of 22.5 and a plate resistance of 9000 Ohms. It only has a plate dissipation rating of 1W. This puts this section somewhat close (but not identical) to the 6J5 (or one half of the 6SN7). Section 2 comes with a 10W plate dissipation rating, an amplification factor of 15.4 and plate resistance of 2000 Ohms.

The tube has a 6,3V heater which runs at a modest current of 0.9A. For the complete set of technical parameters see the General Electric data sheet. The 6DN7 gained a lot of popularity in the 1990ies when Bottlehead offered a single ended experimenters kit with this tube. The parameters of the tube make it obvious why it was an excellent choice for a low priced kit. Section 2 can serve as output stage and is good for maybe 1.5W. The rather high amplification factor of the power section does not require a large voltage swing at the grid and is easily driven by section 1 of the tube. This enables building a complete single ended amplifier with just one tube per channel. So this was a smart choice and the popularity of that kit is most likely the reason why the 6DN7 became somewhat scarce. But still available and at much lower prices than the usual popular triodes. As always let's start by looking at the plate curves.





Section 1 above and section 2 below:




Here a trace of both sections overlaid:




Now some photos of 6DN7 tubes, starting with Sylvania.






Some close ups:





Notice the cooling fin on the grid rods of the power section:







Another Sylvania:





This one only differs in the plate coating.





Like most octal tubes the 6DN7 was also made with the small coin base:












Zenith branded 6DN7:





The same construction as the Sylvania above, except they omitted the cooling fin on the power triode grid. Zenith had the tubes made by Sylvania.






Raytheon:




Lindal:




Amperex:





Westinghouse:




This one has one of the connections between the heaters of the two triodes running across the top:





This is visually quite nice when lit up:




Coin base 6DN7 by Westinghouse:



DuMont:




General Electric:






And lastly Tung-Sol:








An interesting tube! I hope you enjoyed the first tube of the month presentation of this year

Best regards

Thomas






Sunday, January 6, 2019

46 Drive 46 Amps in Landscape Style

Hi!

Here are the photos of the newly finished single ended 46 amplifiers with 46 driver tube.





This time in 4 chassis, mono blocks with separate power supplies.





Finished with all black transformer covers and capacitors in walnut frames.

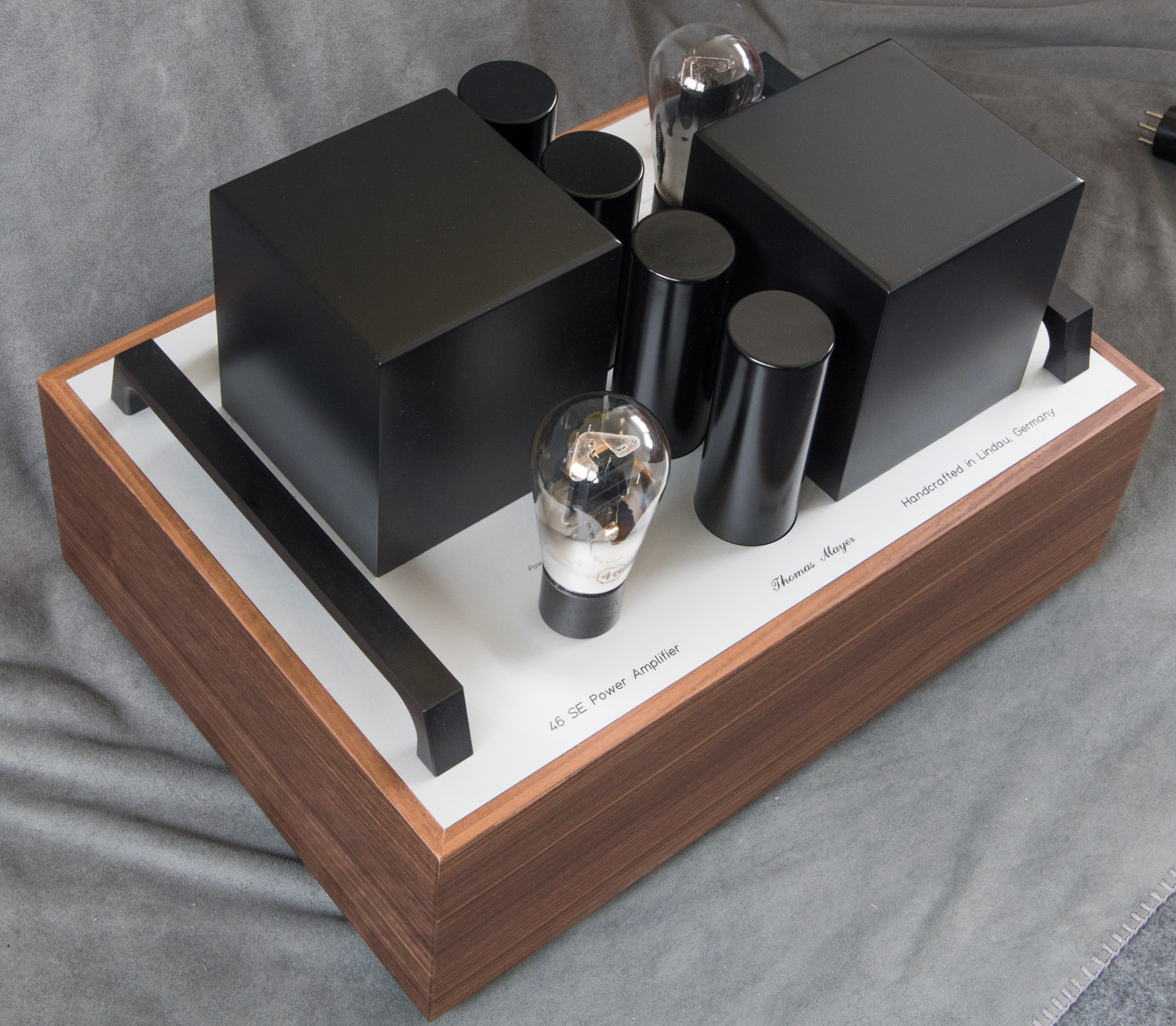

Amplifier section.




Top View.

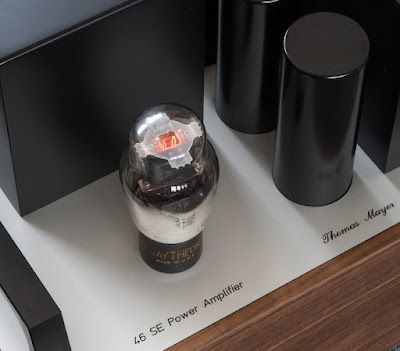

With ST shape 46 tubes.




And here with globe shape 46:






The power supply:




Both amplifier sections:





Both power supplies together::

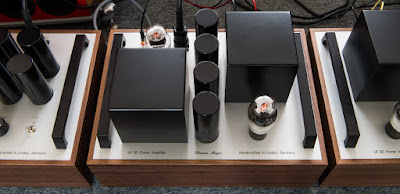

The entire set of 4 chassis:




The driver tube is located at the back side close to the input connector:




Best regards


Thomas
