Friday, June 28, 2019

Silver Goodies

Hi!

Just received a shipment of silver transformers and chokes for upcoming projects.




Silver Output and interstage transformers as well as plate chokes for the differential 46 mono amps, line output transformers for various preamps, phono stages and a silver version of the DAC.




And plenty line input and MC step up transformers.




Best regards

Thomas

Thursday, June 20, 2019

Tube of the Month : The 6P5

Hi!

This months tube is an indirectly heated triode, the 6P5.




In 2015 I did a small series of early small signal tubes covering the 27, 37, 56 and 76. The 6P5 is the successor of the 76.

Electrically it is equivalent to the 76 but it has an Octal base instead of UX5. The Octal pinout is shown on the left. Otherwise it is interchangeable. For all technical parameters refer to the Tung-Sol data sheet. The 6P5 could be regarded as the transition type between the early indirectly heated triodes and the later, more modern medium mu types like 6J5 or the ubiquitous 6SN7. The 6P5 has the same pinout as the 6J5 but is not necessarily interchangeable. It might replace the 6J5 in certain applications and would provide less gain of the circuit can cope with the higher plate resistance. The 6P5 was made in ST 'shoulder type' glass, then named 6P5G or in straight sided glass, named 6P5GT. As usual let's have a look at the plate curves:




As expected as linear as you could hope for from an indirectly heated tube. Lets see a real tube on the tracer:

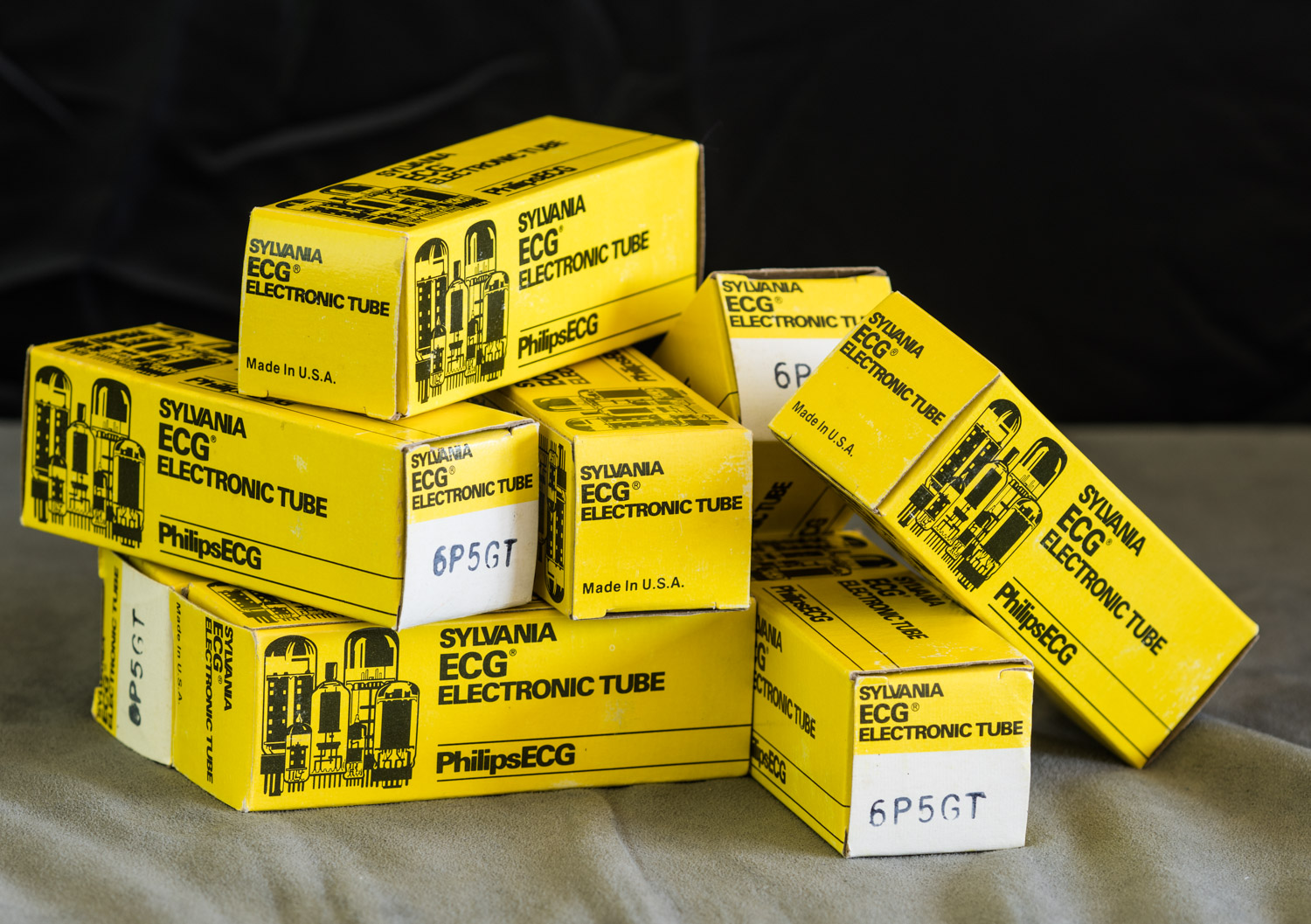

Admittedly I never used any 6P5 tubes myself and only have a small stock. This measly pile is all I got:





All made by Sylvania/ECG when they were part of Philips so rather late manufacture. Unfortunately I have no 6P5G shoulder types to show. Only these Sylvania 6P5GT.




Let's look at it from all sides:









Some close ups:







Details of the box:





I wish I could show more different varieties of this interesting tube.






The Octal base:




Now let's open this one to see the inner construction:




Glass removed:











Grid and cathode:




Close Ups:






The heater wire:




Cathode:




Grid:





Quite intricate engineering! When lit up not much of a light show as is usual with indirectly heated tubes:




Just a little glow from the heater at the bottom and top of the tube:





Another widely unknown but interesting tube. I hope you enjoyed the presentation.

Best regards

Thomas



Thursday, June 13, 2019

10Y Line Stage and D3a Phono

Hi!

The 10Y Line stage and D3a phono are my classic and most requested preamplifiers. Here some photos of the latest build.




Starting with the 10Y line:




Here shown with ELROG ER801A as output tubes.
The power supply unit:




Contrary to the usual style without power on indicator LED and the on/off switch moved to the middle.




This color combination was never used before.




Walnut cases, graphite metallic transformer covers and silver metallic capacitors.




The phono:




Phono power supply unit:




Phono and it's power supply together:




I must say I quite like this new color combination.





Phono and line together, signal units only:





The entire preamp combo:




Best regards

Thomas
